GL ECS-01 Endoscopy Camera System
Bronchoscopy Variant
The first endoscope made in Indonesia for bronchoscopy procedures.
HD/FHD Camera
Cold LED Technology
4K 27/32 Inch Monitor
Flexible Scope
PC & UPS Added

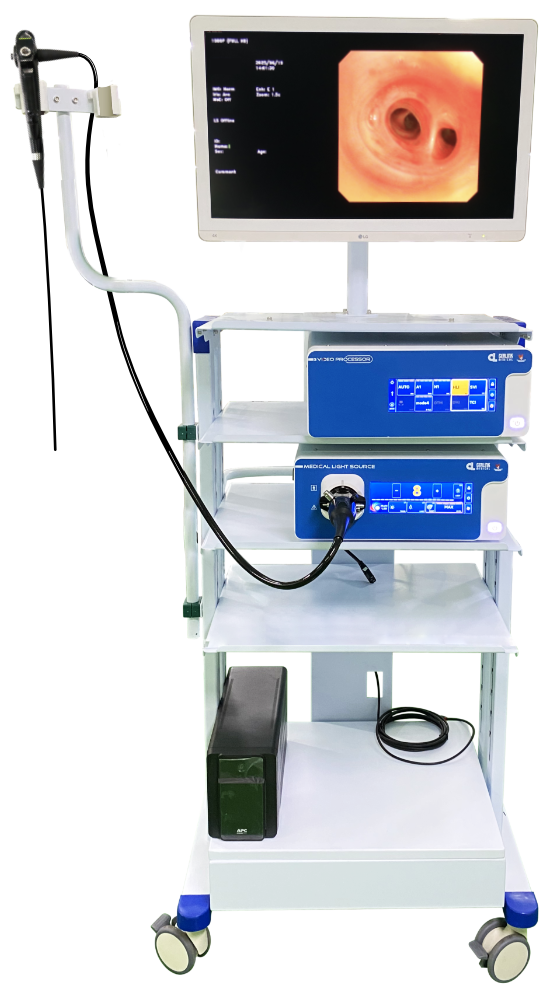

Main Components of GL ECS-01 Bronchoscopy Variant
27 Inch 4K Standard Monitor
- Screen Size : 27 Inch
- Resolution : 4K (2.160 × 3.840 pixels)
- Compatibility :
- HDMI/VIDEO IN/USB
- Color System : PAL/SECAM/NTSC 4,58/NTSC 4,43
- Temperature : 0ºC to 40ºC
- Weight : 4,7 kg
32 Inch 4K Medical Grade Monitor
- Screen Size : 32 Inch
- Resolution : 4K
- (2.160 × 3.840 pixels)
- Compatibility : HDMI/VIDEO IN/USB
- Color System : PAL/SECAM/NTSC 4,58/NTSC 4,43
- Temperature : 0ºC to 40ºC
- Weight : 4,7 kg

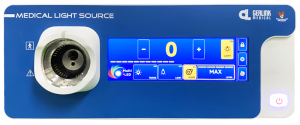

GL ECS-01 Medical Light Source Single Channel
- Number of Channels : 1
- Technology : Cold LED
Flux : 4,500 lm - Temperature : 8,000° – 8,500° K
- Power input : 75 VA
- Illuminance : ≤15,000 lux
- Noise : ≤55 dB
- LED Durability : 10,000 hours
HD Camera System
- Type of protection against electric shock : Class I
- Operating Model :
- Continuous Operating
- Voltage : ~220V
- Frequency : 50Hz / 60Hz
- Input Power : 60 VA
- Video Signal Outputs : RGB, CVBS, Y/C, DVI, VIDEO
Full HD Camera System
- Type of protection against electric shock : Class I
- Operating Model :
- Continuous Operating
- Voltage : ~220V
- Frequency : 50Hz / 60Hz
- Input Power : 60 VA
- Video Signal Outputs : RGB, CVBS, Y/C, DVI, VIDEO
- Resolution : Full HD (1980 x 1080 px)
Reporting System
4K Version
- Motherboard : B550M Pro VDH WiFi
- Processor : AMD Ryzen 5 5600
- VGA : RTX 4060
- RAM : 16 GB DDR4 3.600 MHz
- Penyimpanan : SSD NVME TEAM MP33 256 GB, HDD SEAGATE BARRACUDA 8 TB
- Casing : VXM Mesh Dual Chamber
Flexible Scope
- Working Length : 600mm
- Depth : 3-50mm
- Range of Bending (U/D) : U160° D130°
- Diameter of Insertion Tube : 4.9mm
- Diameter of Instrument Channel : 2.0mm
- Field of View : 120°
Cabinet Scope
- Material : Stainless steel
- Features : There are biopsy hangers on the right and left sides
- Door design : Swing door with glass
- Mobility : Equipped with 4-inch wheels with brakes on 2 wheels
- Dimensions : 110 x 50 x 200 cm
Portable Wireless Bronchoscope
- Technology : CMOS + LED electronic imaging technology – no built-in optical fiber
- Design : Light weight design, reduce your burden during operations, support brightness adjustment & image freeze
- Button : One button to adjust left/right direction, no need your body movement
- Deflection : Up/Down : ≥150°/150°(w/o working channel), ≥130°/130°(with working channel), OD/ID : 5.2/2.6 mm & 5.8/3 mm length 600 mm
- Other features : Equipped with wireless monitor & ergonomic trolley
Bronchoscopy Cable Portable System
- Monitor size : 12.1 inches
- Viewing angle : 120°
- Viewing direction : Forward
- Depth of field : 5 ~ 50 mm
- Input tube : Ovm6946 lens, LED lamp, LED light, instrument channel
- Angle range : Up 180°/ Down 180°
Outer diameter and working channel variants
- Outer diameter : 5.8 mm; working channel 3.2 mm
- Outer diameter : 5.2 mm; working channel 3.0 mm
- Outer diameter : 4.8 mm; working channel 2.6 mm
- Outer diameter : 3.8 mm; working channel 1.8 mm
- Outer diameter : 2.8 mm; working channel 1.2 mm (can be used for ENT)
Pleurascopy
- Type : 160K pixel series
- Input part : Φ5.8mm
- Working channel : 3.0 mm
- Viewing field : 120°
- Depth of field : 5~50 mm
- Working length : 300 mm
- Deflection : 180°/180°
- Viewing direction : Forward
- Lamp type : LED
- Compatible devices : SP-TXCLQ-02-3.5, SP-TXCLQ12.1., SP-TD-PC
Endoscope Washer
- Disinfectant capacity : 10-12 L (include dosage)
- Enzyme capacity : 50 mL each cycle
- Alcohol capacity : 50 mL each cycle
- Rinsing time : Adjustable
- Heating function : 0~40 °C
- Power supply : 0,5 KVA; 220 VAC max. 350W
- Weight : 60 kg
- Water supply & draining : Water pressure 0,3~0,4 MPa
- Dimension : 96 x 55,2 x 62 cm
Portable Suction
- Power supply : AC 220V 50 Hz
- Input : 150 VA
- Negative pressure limit : ≥0,08 MPa (760 mmHg)
- Suction rate : ≥32 L/min (760 mmHg)
- Liquid storage bottle : 1.000 mL/pc
- Noise : ≤60 dB
